Ranked #97 in Parts
*Actual product may vary from image shown

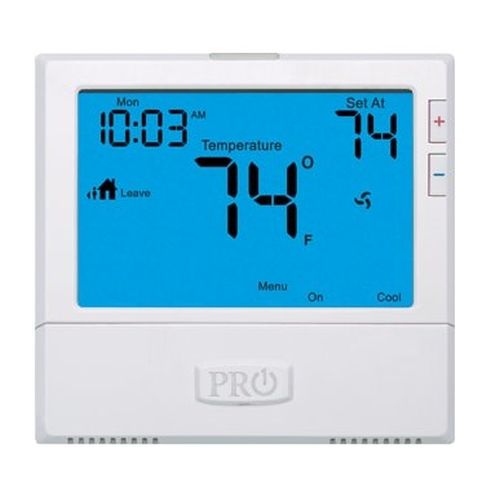

Pro1 5+1+1/7 Day Programmable (3H/2C) Thermostat - 8 sq. in Display

PRO T855
IN STOCK
Login for Store Location Quantities
$117.51
Length: 7.00
  • Packaging: EA

    • 7 Day or 5/1/1 progammable

    • Auto Changeover

    • Easy menu driven programming

    • Intuitive wake, leave, return, sleep programming icons

    • 8 sq. inch display

    • Blue backlight

    • Glow in the dark light button

    • Programmable fan

    • Electric or Gas configurable

    • Room temperature calibration adjustment

    • Separate heating and cooling swing (cycle rate) adjustments

    • Keypad lockout

    • Heating and cooling setpoint limits

    • 5 minute compressor delay protection (selectable on or off)

    • Filter change indicator(selectable on or off)

    • Simple private label badge system

    • Easy wire color coded terminal blocks

    • Universal sub-base

    • Mounts on wall or junction box

    • Battery or 24v power

    • 5 year warranty
    The display range of temperature 41°F to 95°F (5°C to 35°C)
    The control range of temperature 44°F to 90°F (7°C to 32°C)

    Load rating

    		 1 amp per terminal, 1.5 amp maximum all terminals combined
    Display accuracy ± 1 °F
    Swing (cycle rate or differential) Heating is adjustable from 0.2°F to 2.0°F
    Cooling is adjustable from 0.2    °F to 2.0°F
    Power source 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
    Battery power from 2 AA Alkaline Energizer batteries
    Operating ambient

    32° to +105° (O° to + 41°C)

    Operating humidity

    90% non-condensing maximum

    Dimensions of thermostat

    4.7"W x 4.4"H x 1.1"D

    Customers Who Bought This Item Also Bought

    Item IdDescriptionUOMYour PriceQty
    S40 3/4MA
    		3/4in Schedule 40 PVC Male AdapterEA$0.94
    S40 3/4E
    		3/4in Schedule 40 PVC 90 Degree ElbowEA$1.06
    SOU P491
    		Topaz 1/2in Nonmetallic Angle ConnectorEA$6.89
    OAT 42758

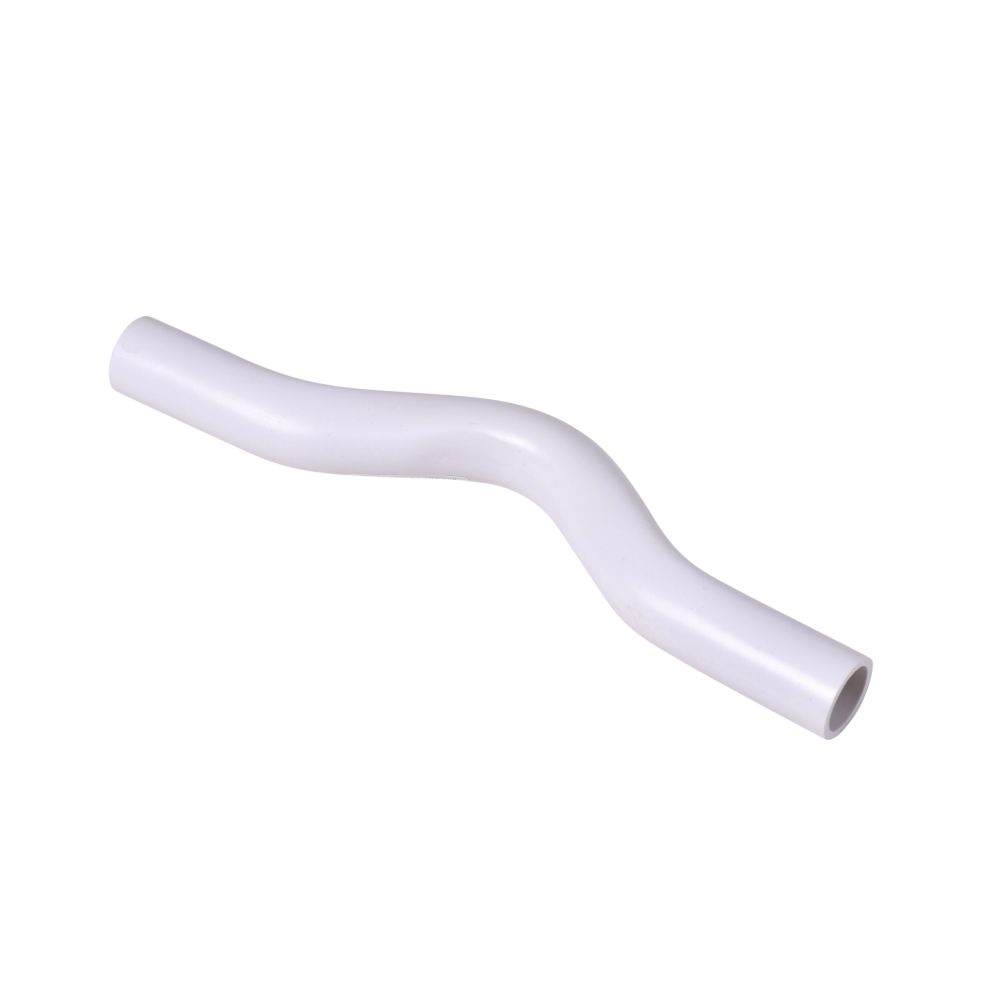

    		Oatey 3/4in PVC Condensate Running TrapEA$2.12
