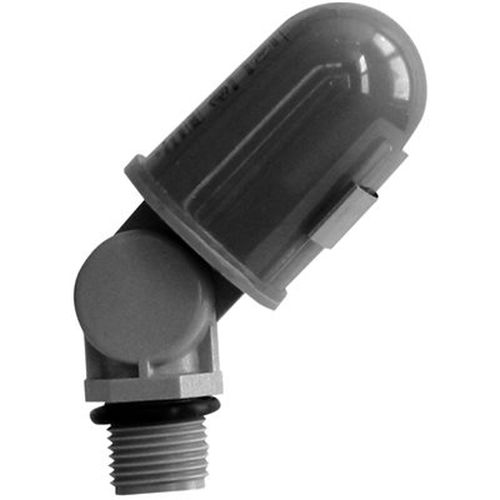

Shutter Style Photocontrol - Fixed Base features include:
- Photocontrol features a heavy-duty thermal bi-metal switch that provides a 30-60 second time delay. This virtually eliminates unwanted lamp cycling that could be caused by lightning, car headlights, etc
- Although the turn-on level is pre-set at the factory, each control is furnished with an adjustable slide shutter/bar that allows field adjustment
- Typically mount on fixtures or boxes
- Weatherproof Polycarbonate Housing
- Single Pole, Single Throw Switch
- Contact Position at Night is Normally Closed
- Temperature Range: -40°F to 158°F
- Power Consumption Below 1.5 Watts Average
- Standard 1/2” I.P.S. Pipe Threaded Nipple, Includes Gasket and Locknut
- 6" Color Coded Leads with Wiring Diagram on Control
- UL Listed
