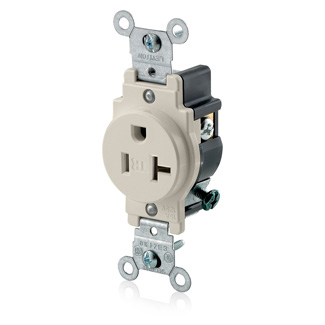

Leviton Light Almond 20A Tamper Proof Single Receptacle

LEV T5020T
IN STOCK
$5.28
  • Packaging: EA
  • Brand Features

    Plug Into Safety with Leviton's Line of Tamper-Resistant (TR) Receptacles. Leviton makes it easy for you to comply with the current NEC mandate for TR Receptacles in all new residential housing. This requirement resulted from a Consumer Product Safety Commission study, that reported alleged injuries in the home caused each year by children attempting to insert foreign objects into receptacles. TR receptacles have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries. As a long-time manufacturer of tamper-resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in Residential , Commercial, Industrial and Hospital Grades.

    Item Description

    20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Narrow Body Single Receptacle, Straight Blade, Tamper-Resistant, Commercial Grade, Grounding, Back & Side Wired, Steel Strap - LIGHT ALMOND

    • AC Horsepower Ratings
    • At Rated Voltage: 1 HP
    • Electrical Specifications
    • Grounding: Self-Grounding
    • Amperage: 20 Amp
    • Voltage: 125 Volt
    • Pole: 2
    • Wire: 3
    • Dielectric Voltage: Withstands 2000V per UL498
    • Current Limiting: Full Rated Current
    • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
    • Environmental Specifications
    • Flammability: Rated V-2 per UL94
    • Operating Temperature: -40C to 60C
    • Material Specifications
    • Face Material: Thermoplastic Nylon
    • Body Material: Thermoplastic Nylon
    • Line Contacts: Brass Triple-Wipe
    • Terminal Screws: Brass 10-32
    • Grounding Screw: Brass 8-32
    • Strap Material: Zinc-Plated Steel
    • Clamp Nuts: Zinc-Plated Steel
    • Ground Clips: Brass-Plated
    • Color: Light Almond
    • Mechanical Specifications
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Terminal Accom.: 14-10 AWG
    • Product ID: Ratings are permanently marked on device
    • Termination: Back & Side
    • Product Features
    • NEMA: 5-20R
    • Color: Light Almond
    • Standards and Certifications
    • NEMA: WD-6
    • ANSI: C-73
    • UL498: File E13399
    • UL Fed Spec WC-596: File E13399
    • CSA C22.2 No. 42: File 152105
    • NOM: 057
    • Warranty: 10 Year Limited
