Brand Features

Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.

Item Description

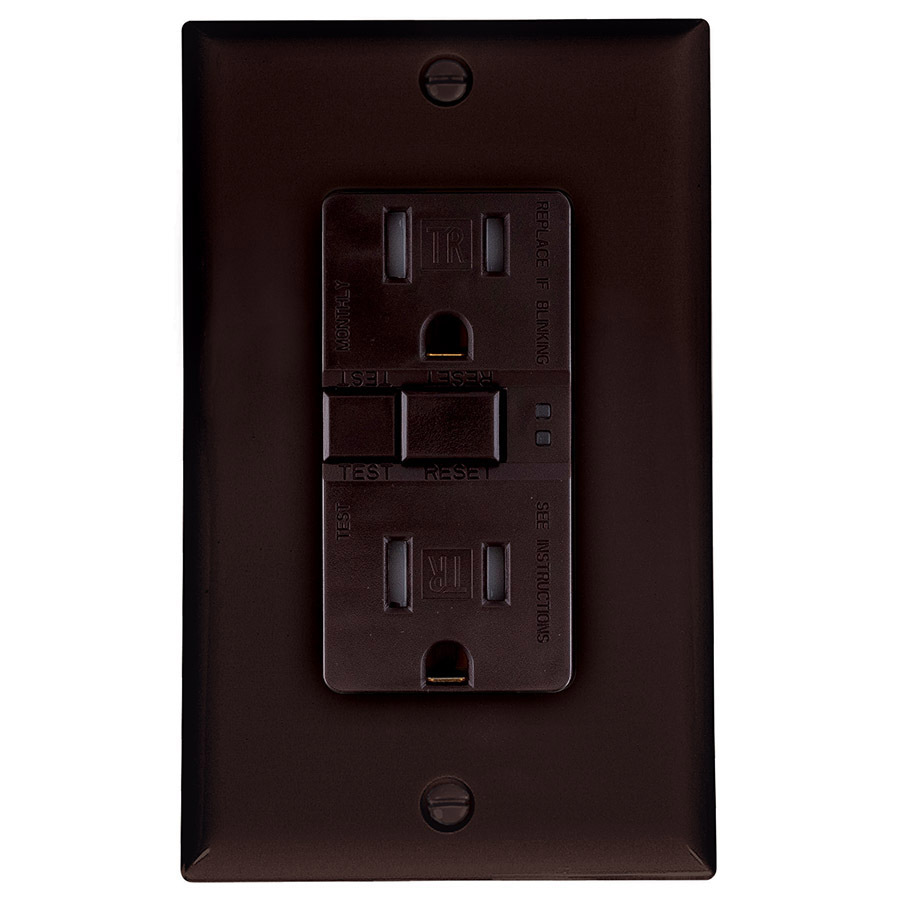

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro GFCI, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included - Brown

Product Specifications

AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical Specifications
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -35C to +66C

Material Specifications
Face Material: Thermoplastic
Body Material: Polycarbonate
Line Contacts: Brass Double Wipe .031 Thick
Terminal Screws: Plated Steel
Grounding Screw: Plated Steel
Yoke: Zinc-Plated Steel
Clamps: Brass
Notes: w/ Wallplate

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 14-10 AWG
Product ID: Ratings are permanently marked on device

Product Features
Feature: Self-Test
Amperage: 15 Amp
Voltage: 125 Volt
NEMA: 5-15R
Pole: 2
Wire: 3
Trip Level: Class A, 5mA plus or minus 1mA
Termination: Back & Side
Face Material: Thermoplastic
Body Material: Polycarbonate
Grounding: Self Grounding
Color: Brown
Strap Material: Galvanized Steel
Standards and Certifications: UL/CSA
Fed Spec WC-596: Yes
Warranty: 2-Year Limited
Grade: Commercial

Standards and Certifications
NEMA: WD-6
ANSI: C-73
UL498: Yes
CSA C22.2 No. 42: Yes
NOM: Yes
CSA-C22.2 No. 144.1-06: File LR-57811
MIL-SPEC: A-A-55459-SB
UL 943: File E48380
Fed Spec WC-596: Yes
