Brand Features

Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.

Item Description

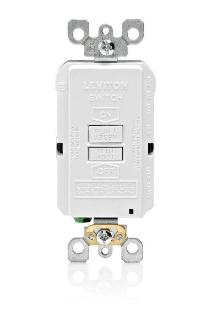

20 Amp Feed- Through, 125 Volt Receptacle/Outlet, Self-test SmartLock Pro Slim Blank GFCI, monochromatic, back and side wired, wallplate/faceplate sold separately,self grounding clip included - White

AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical Specifications
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -35C to +66C

Material Specifications
Face Material: Thermoplastic
Body Material: Polycarbonate
Line Contacts: Brass Double-Wipe .031 Thick
Terminal Screws: Plated Steel
Grounding Screw: Plated Steel
Yoke: Zinc-Plated Steel
Clamps: Brass
Wallplate: Order Separately

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 14-10 AWG

Product Features
Feature: Self-Test
Feed-Through Current: 20 Amp
Voltage: 125 Volt
Pole: 2
Wire: 3
Trip Level: Class A, 5mA plus or minus 1mA
Termination: Back & Side
Face Material: Thermoplastic
Body Material: Polycarbonate
Grounding: Self Grounding
Color: White
Strap Material: Galvanized Steel
Standards and Certifications: UL/CSA
Fed Spec WC-596: Yes
Warranty: 2-Year Limited
Wallplate: Order Separately

Standards and Certifications
NEMA: WD-6
ANSI: C-73
CSA C22.2 No. 42: Yes
NOM: Yes
UL 943: File E48380
CSA-C22.2 No. 144.1-06: File LR-57811
Fed Spec WC-596: Yes

Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
On initial power up, tests the GFCI within 3 seconds\
Auto-monitoring exceeds the UL requirement
Auto adapts and shifts to more frequent testing if potential problem is detected
Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
Electronics are designed to minimize any false triggers
Reduced depth makes it easier to install in any electrical box, even shallow ones
Terminals allow for easy wiring options – back and side wire capable
External back wire clamps provide visual indication of proper wire seating
Withstands high torque and resists wire pullout
Standard brass self-grounding clip
Trip threshold meets or exceeds UL requirements for tripping time
Improved immunity to high-frequency noise reduces nuisance tripping
Advanced electronics design provides superior resistance to electrical surges and over-voltages
Compatible with all Decora devices and wallplates; available in select Decora colors
UL Fed Spec WC-596 rated
