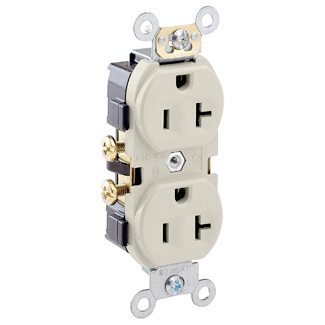

*Actual product may vary from image shown

RECEPTACLE 20A 120V DUPLEX LIGHT ALMOND

LEV CR20-T
IN STOCK
Login for Store Location Quantities
$2.61
  • Packaging: EA

    • Brand Features

    Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

    Item Description

    20 Amp-125 Volt, Nema 5-20R. Side wired, duplex, straight blade receptacle. Light Almond

    • AC Horsepower Ratings
    • At Rated Voltage: 1 HP
    • Electrical Specifications
    • Grounding: Self-Grounding
    • Amperage: 20 Amp
    • Voltage: 125 Volt
    • Pole: 2
    • Wire: 3
    • Dielectric Voltage: Withstands 2000V per UL498
    • Current Limiting: Full Rated Current
    • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
    • Environmental Specifications
    • Flammability: Rated V-2 per UL94
    • Operating Temperature: -40C to 60C
    • Material Specifications
    • Face Material: Thermoplastic
    • Body Material: Thermoplastic
    • Line Contacts: Brass .031 Thick
    • Terminal Screws: Steel 8-32
    • Grounding Screw: Steel 8-32
    • Strap Material: Zinc-Plated Steel
    • Ground Clips: Brass
    • Mechanical Specifications
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Terminal Accom.: 14-10 AWG
    • Product ID: Ratings are permanently marked on device
    • Termination: Side
    • Product Features
    • NEMA: 5-20R
    • Color: Light Almond
    • Standards and Certifications
    • NEMA: WD-1 & WD-6
    • ANSI: C-73
    • UL498: File E13399
    • CSA C22.2 No. 42: File 152105
    • NOM: 057
    • Warranty: 10 Year Limited
