Brand Features

Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Item Description

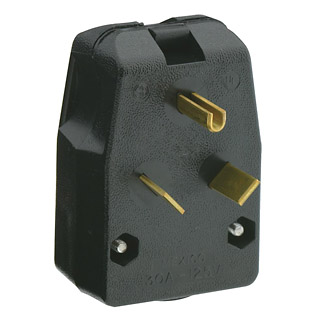

30 Amp, 125 Volt, NEMA TT-30P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Angle, Grounding - Black

Product Specifications

AC Horsepower Ratings
At Rated Voltage: 2 HP

Electrical Specifications
Grounding: Grounding
Amperage: 30 Amp
Voltage: 125 Volt
Pole: 2
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C

Material Specifications
Body Material: Thermoplastic
Blades/Contacts: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: Up to 4 AWG
Product ID: Ratings are permanently marked on device
Cord Range: .687 - .875

Product Features
NEMA: TT-30P
Color: Black
Warranty: 10 Year Limited

Standards and Certifications
NEMA: WD-6
ANSI: C-73
UL498: File E13399
CSA C22.2 No. 42: File 152105
NOM: 057
Warranty: 10 Year Limited

Customers Who Bought This Item Also Bought

Item Id	Description	UOM	Your Price
LEV 7313-S00	Leviton 3W 30A 125V Flush Mount RV Receptacle	EA	$24.57

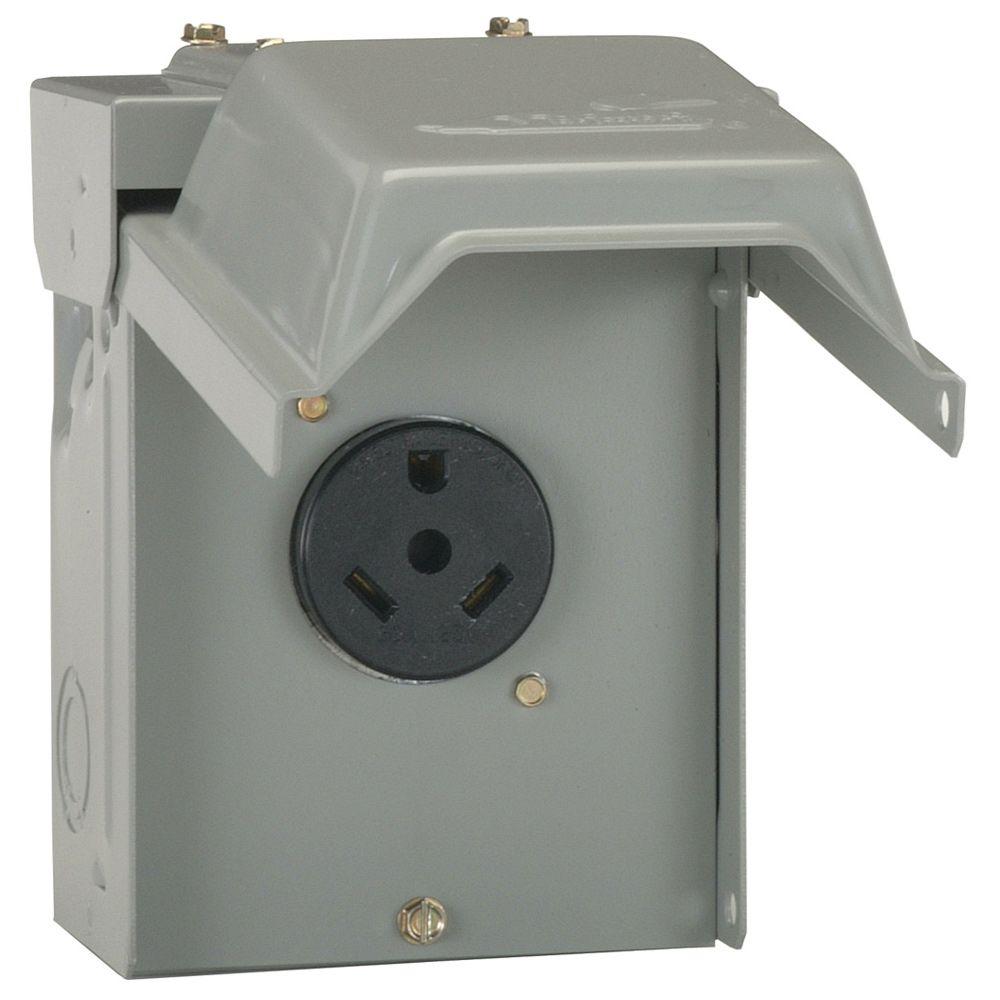

MID U013	Midwest 30A 120V Unmetered, Surface Mount Rainproof Power Outlet	EA	$66.53
