Ranked #79 in Switches, Receptacles & Covers

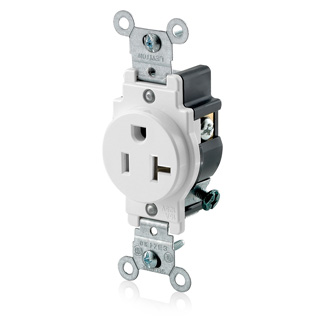

*Actual product may vary from image shown

Leviton Ivory 20A 120V Single Receptacle

LEV 5801-I
IN STOCK
Login for Store Location Quantities
$3.29
  • Packaging: EA

    • Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Grounding - Ivory

    Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

    AC Horsepower Ratings
    At Rated Voltage: 1 HP

    Electrical Specifications
    Amperage: 20 A
    Current Limiting: Full Rated Current
    Dielectric Voltage: Withstands 2000V per UL498
    Grounding: Grounding
    Pole: 2
    Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
    Voltage: 125 VAC
    Wire: 3

    Environmental Specifications
    Flammability: Rated V-2 per UL 94
    Operating Temperature: -40°C to 60°C

    Material Specifications
    Body Material: Nylon
    Color: Ivory
    Face Material: Nylon
    Grounding Screw: Brass 8-32
    Line Contacts: Brass Double Wipe .031 Thick
    Strap Material: Zinc-Plated Steel
    Terminal Screws: Brass 8-32

    Mechanical Specifications
    Product ID: Ratings are permanently marked on device
    Terminal Accom.: 14-10 AWG
    Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    Termination: Side Wire

    Product Features
    Color: Ivory
    Device Type: Single Receptacle Outlet
    Feature 4: Smooth Face
    Grade: Commercial Specification Grade
    NEMA: 5-20R

    Standards and Certifications
    ANSI: C-73
    CSA C22.2 No. 42: File 152105
    NEMA: WD-2 WD-6
    NOM: 057
    UL498: File E13399
    UL Fed Spec WC-596: File E13399
    Warranty: 10 Year Limited
