Ranked #89 in Switches, Receptacles & Covers
*Actual product may vary from image shown

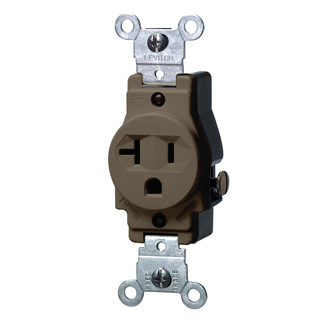

Leviton Brown 20A 120V Single Receptacle

LEV 5801
IN STOCK
Login for Store Location Quantities
$3.29
  • Packaging: EA

    • Brand Features

    Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

    Item Description

    20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Narrow Body Single Receptacle, Straight Blade, Commercial Grade, Grounding, , , Side Wired, Steel Strap, - Brown

    • AC Horsepower Ratings
    • At Rated Voltage: 1 HP
    • Electrical Specifications
    • Grounding: Grounding
    • Amperage: 20 Amp
    • Voltage: 125 Volt
    • Pole: 2
    • Wire: 3
    • Dielectric Voltage: Withstands 2000V per UL498
    • Current Limiting: Full Rated Current
    • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
    • Environmental Specifications
    • Flammability: Rated V-2 per UL94
    • Operating Temperature: -40C to 60C
    • Material Specifications
    • Face Material: Nylon
    • Body Material: Nylon
    • Line Contacts: Brass Double Wipe .031 Thick
    • Terminal Screws: Brass 8-32
    • Grounding Screw: Brass 8-32
    • Strap Material: Zinc-Plated Steel
    • Color: Brown
    • Mechanical Specifications
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Terminal Accom.: 14-10 AWG
    • Product ID: Ratings are permanently marked on device
    • Termination: Side
    • Product Features
    • NEMA: 5-20R
    • Color: Brown
    • Standards and Certifications
    • NEMA: WD-2 WD-6
    • ANSI: C-73
    • UL498: File E13399
    • UL Fed Spec WC-596: File E13399
    • CSA C22.2 No. 42: File 152105
    • NOM: 057
    • Warranty: 10 Year Limited
