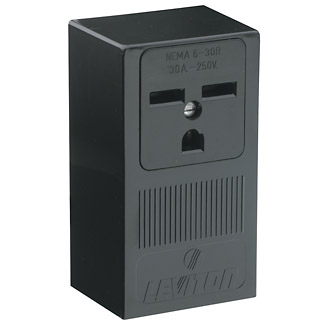

Leviton 3W 30A 250V Surface Mount Power Receptacle

LEV 5376-P00
IN STOCK
Login for Store Location Quantities
$42.94
  • Packaging: EA

    • Brand Features

    Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

    Item Description

    30 Amp, 250 Volt, NEMA 6-30R, 2P, 3W, Surface Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Steel Strap, - Black

    • AC Horsepower Ratings
    • At Rated Voltage: 2 HP
    • Electrical Specifications
    • Grounding: Grounding
    • Amperage: 30 Amp
    • Voltage: 250 Volt
    • Pole: 2
    • Wire: 3
    • Dielectric Voltage: Withstands 2000V per UL498
    • Current Limiting: Full Rated Current
    • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
    • Environmental Specifications
    • Flammability: Rated V-2 per UL94
    • Operating Temperature: -40C to 60C
    • Material Specifications
    • Face Material: Thermoplastic
    • Body Material: Thermoplastic
    • Strap Material: Galvanized Steel
    • Color: Black
    • Mechanical Specifications
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Terminal Accom.: Up to 4 AWG
    • Product ID: Ratings are permanently marked on device
    • Product Features
    • NEMA: 6-30R
    • Color: Black
    • Standards and Certifications
    • NEMA: WD-6
    • ANSI: C-73
    • UL498: File E13399
    • CSA C22.2 No. 42: File 152105
    • NOM: 057
    • Warranty: 10 Year Limited
