Leviton 3W 50A 125/250V Flush Mount Range Receptacle

LEV 5206
IN STOCK
$6.65
  • Packaging: EA
  • Brand Features

    Built of durable thermoplastic, Leviton Power Receptacles — come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.

    Item Description

    50 Amp, 125/250 Volt, NEMA 10-50R, 3P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, AL-CU, Side Wired, Steel Strap - Black

    • AC Horsepower Ratings
    • At Rated Voltage: 3 HP
    • Electrical Specifications
    • Grounding: Non-Grounding
    • Amperage: 50 Amp
    • Voltage: 125/250 Volt
    • Pole: 3
    • Wire: 3
    • Dielectric Voltage: Withstands 2000V per UL498
    • Current Limiting: Full Rated Current
    • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
    • Environmental Specifications
    • Flammability: Rated V-2 per UL94
    • Operating Temperature: -40C to 60C
    • Material Specifications
    • Face Material: Nylon
    • Body Material: Nylon
    • Line Contacts: Brass Double-Wipe
    • Strap Material: Galvanized Steel
    • Color: Black
    • Mechanical Specifications
    • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
    • Terminal Accom.: Up to 4 AWG
    • Product ID: Ratings are permanently marked on device
    • Product Features
    • NEMA: 10-50R
    • Color: Black
    • Standards and Certifications
    • NEMA: WD-6
    • ANSI: C-73
    • UL498: File E13399
    • CSA C22.2 No. 42: File 152105
    • NOM: 057
    • Warranty: 10 Year Limited

    Customers Who Bought This Item Also Bought

    Item IdDescriptionUOMYour PriceQty
    LEV 83026
    Leviton 2-Gang Dryer/Range Receptacle CoverEA$6.73
    LEV 84028
    Leviton 1-Gang Chrome Receptacle CoverEA$5.59
    LEV 5207-S10
    Leviton 3W 30A 125/250V Flush Mount Dryer ReceptacleEA$6.27
    LEV 47-4

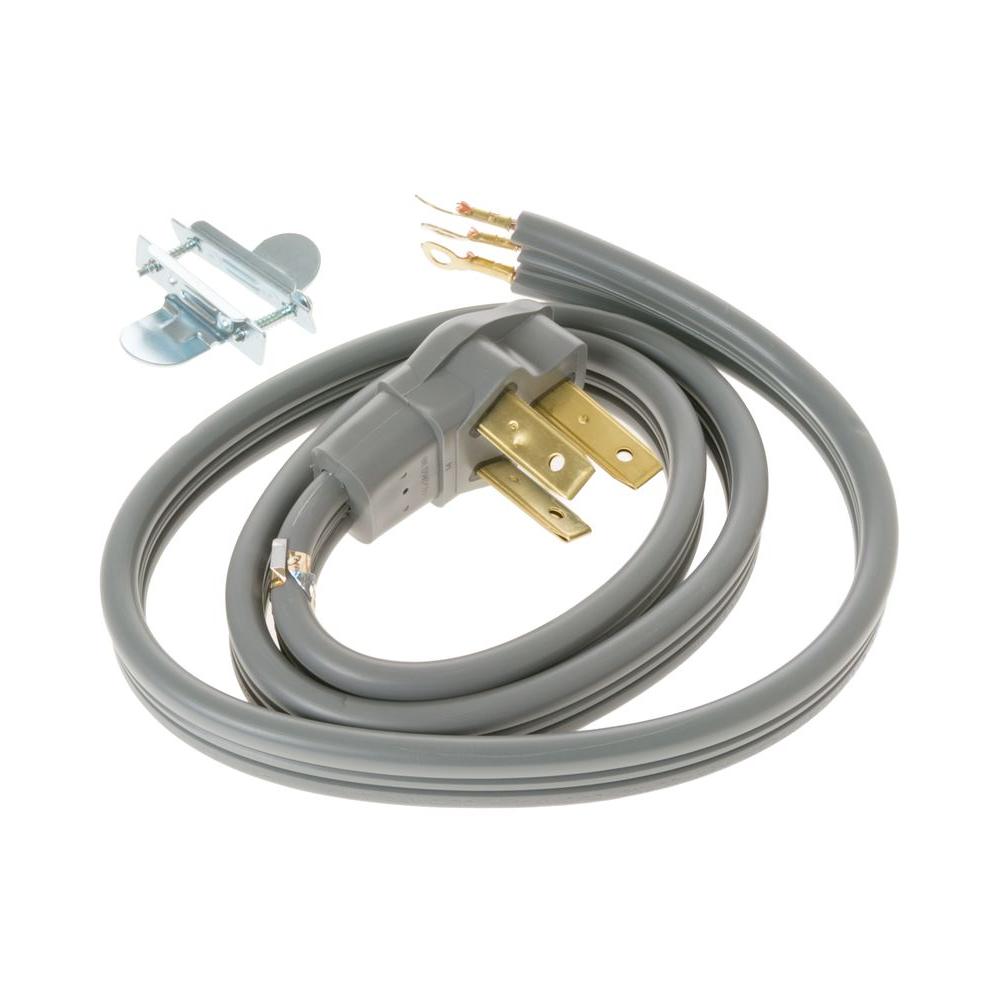

    4ft 3-Wire RangeCordEA$32.78
