Brand Features

Built of durable thermoplastic, Leviton Power Receptacles — come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.

Item Description

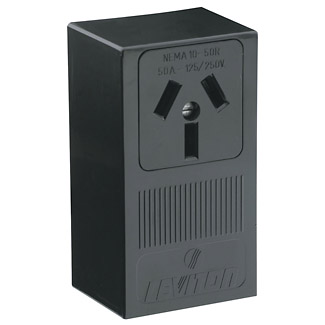

50 Amp, 125/250 Volt, NEMA 10-50R, 3P, 3W, Surface Mtg Receptacle, Straight Blade, Industrial Grade, Non-Grounding, AL-CU, Side Wired, Steel Strap, - Black

Product Specifications

C Horsepower Ratings
At Rated Voltage: 3 HP

Electrical Specifications
Grounding: Non-Grounding
Amperage: 50 Amp
Voltage: 125/250 Volt
Pole: 3
Wire: 3
Dielectric Voltage: Withstands 2000V per UL498
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current

Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C

Material Specifications
Face Material: Thermoplastic
Body Material: Thermoplastic
Strap Material: Galvanized Steel
Color: Black

Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: Up to 4 AWG
Product ID: Ratings are permanently marked on device

Product Features
NEMA: 10-50R
Color: Black

Standards and Certifications
NEMA: WD-6
ANSI: C-73
UL498: File E13399
CSA C22.2 No. 42: File 152105
NOM: 057
Warranty: 10 Year Limited
